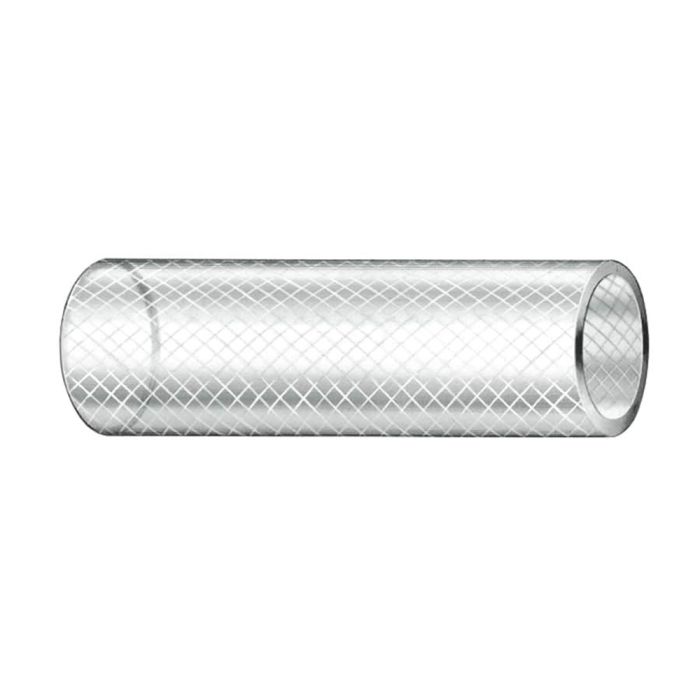

Trident Marine 1" Heavy Duty Reinforced PVC (FDA) Hose - Drinking Water Safe - Clear - Sold by the Foot

1" Heavy Duty Reinforced PVC (FDA) Hose - Drinking Water Safe - Clear - Sold by the Foot

Clear FDA-grade PVC hose with heavy-duty nylon reinforcement provides excellent flexibility and bend radius.

Features:

• Sold by the foot
• Good flexibility and bend radius
• Resists odor, taste, and up to 250 PSI/WP (depending on I.D. size) @ 70°F (21°C)
• This hose is safe for use with drinking water

Applications:

• For pressurized drinking water systems and many other uses
• For cold and hot tap water

Construction:

• Tube: Plasticized PVC (FDA)
• Color: Clear with white nylon reinforcement
• Reinforcement: PVC and HD nylon reinforcement
• Temperature Range: 20°F to 150°F (-7ºC to 66ºC)

Specifications:

• Inner Diameter: (inch) 1" / (mm) 25.4
• Outer Diameter: (inch) 1.185 / (mm) 30.1
• Burst Pressure: (PSI @ 70ºF) 25.7 / (bar) 1.77
• Working Pressure: (PSI @ 70ºF) 90

Bend Radius: (inch) 4" / (mm) 101.6



Additional Specs (If Applicable):

• ID Diameter (inches) = 1"
