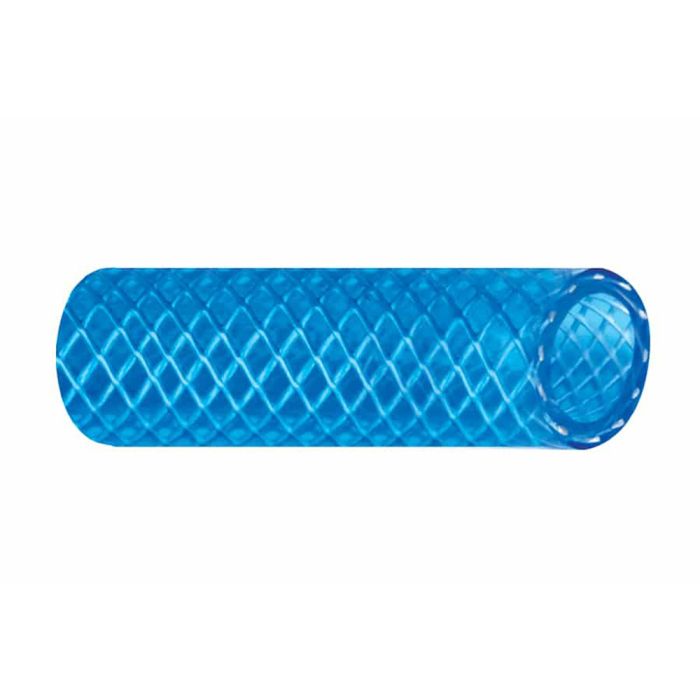

Trident Marine 5/8" Reinforced PVC (FDA) Cold Water Feed Line Hose - Drinking Water Safe - Translucent Blue - Sold by the Foot

In stock
SKU
99600
$2.03
Trident Marine 5/8" Translucent Blue Polyester

5/8" Reinforced PVC (FDA) Cold Water Feed Line Hose - Drinking Water Safe - Translucent Blue - Sold by the Foot

Trident 165 Series Blue - polyester reinforced PVC hose for "Cold Water" feed lines. The FDA-grade tube is non-toxic, odorless, and tasteless. Suitable for use in harsh operating conditions with temperatures as low as -18.4ºF (- 28ºC) and can handle pressures up to 250 psi (varies based on I.D size).

Features:

  • Sold by the foot
  • The Blue cover allows for easy identification of "Cold Water" lines on your boat
  • Made of 3-ply polyester for excellent abrasion resistance and sustained flexibility
  • This hose is safe for use with drinking water

Application:

  • Perfect for cold pressurized applications, water feed, drains, and vent lines

Construction:

  • Tube & Cover: Clear FDA tube
  • Color: Blue Transparent
  • Reinforcement: Polyester
  • Temperature Range: -18°F to 149°F (-28°C to 65°C)

Specifications:

  • Inner Diameter: (inch) 5/8" / (mm) 15.9
  • Outer Diameter: (inch) .866 / (mm) 22.5
  • Working Pressure: (PSI Vac In./Hg) 230 / (bar) 16
  • Bend Radius: (inch) 1.26" / (mm) 32

*Burst Pressure is 4 x Working Pressure



Additional Specs (If Applicable):

  • ID Diameter (inches) = 5/8"
More Information
MFG Part Number 165-0586-FT
upc N/A
