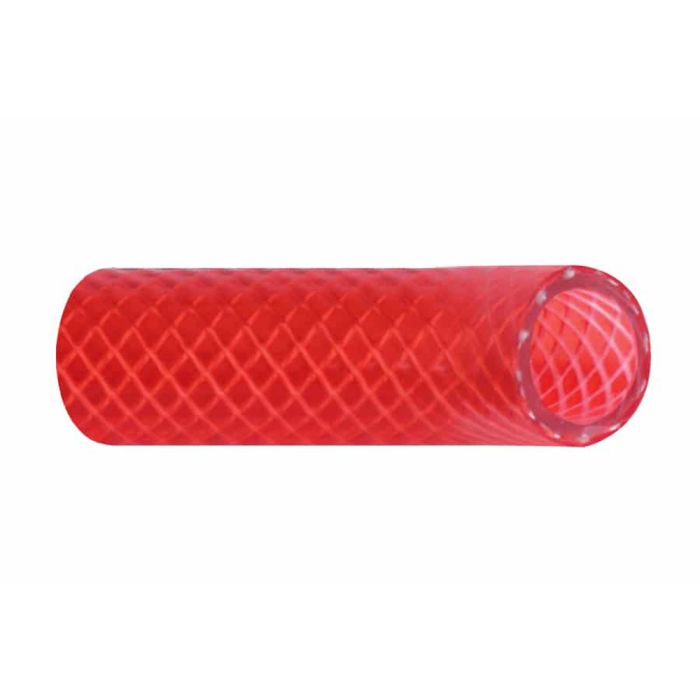

Trident Marine 1/2" Reinforced PVC (FDA) Hot Water Feed Line Hose - Drinking Water Safe - Translucent Red - Sold by the Foot

In stock
SKU
99598
$1.92
Trident Marine 1/2" Translucent Red Polyester

1/2" Reinforced PVC (FDA) Hot Water Feed Line Hose - Drinking Water Safe - Translucent Red - Sold by the Foot

Trident 166 Series Red - polyester reinforced PVC hose for "Hot Water" feed lines. The FDA-grade tube is non-toxic, odorless, and tasteless. Suitable for use in harsh operating conditions with temperatures of up to 149ºF (65ºC) and can handle pressures to a maximum of 250 psi (varies based on i.d size).

Features:

  • Sold by the foot
  • The Red cover allows for easy identification of "Hot Water" lines on your boat
  • Made of 3-ply polyester for excellent abrasion resistance and sustained flexibility
  • This hose is safe for use with drinking water

Application:

  • Perfect for hot, pressurized applications, hot water feed, drains, and vent lines

Construction:

  • Tube & Cover: Clear FDA tube
  • Color: Red Transparent
  • Reinforcement: Polyester
  • Temperature Range: -18°F to 149°F (-28°C to 65°C)

Specifications:

  • Inner Diameter: (inch) 1/2" / (mm) 12.7
  • Outer Diameter: (inch) .777 / (mm) 19.6
  • Working Pressure: (PSI Vac In./Hg) 250 / (bar) 17
  • Bend Radius: (inch) 0.98" / (mm) 25

*Burst Pressure is 4 x Working Pressure



Additional Specs (If Applicable):

  • ID Diameter (inches) = 1/2"
More Information
MFG Part Number 166-0126-FT
upc N/A
