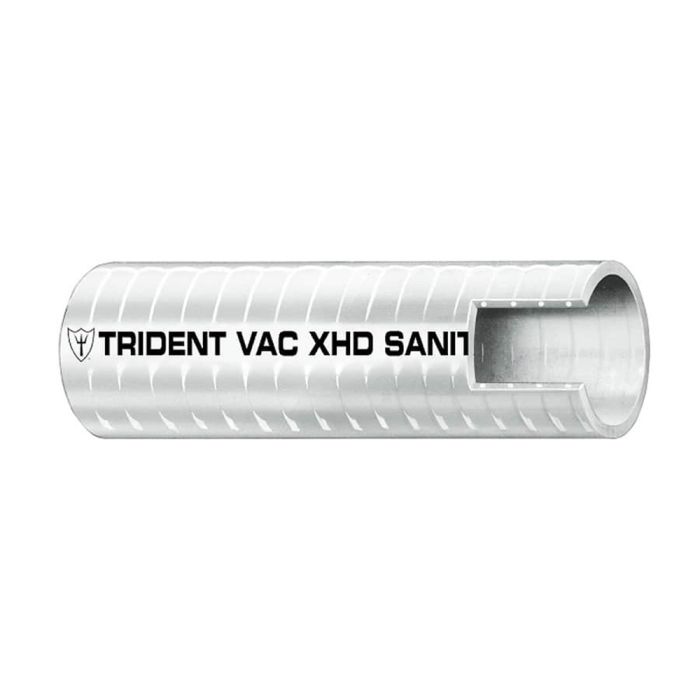

Trident Marine 1-1/2" VAC XHD Sanitation Hose - Hard PVC Helix - White - Sold by the Foot

In stock
SKU
99606
$6.14
Trident Marine 1-1/2" Vac Xhd Sanitation Hose

1-1/2" VAC XHD Sanitation Hose - Hard PVC Helix - White - Sold by the Foot

Trident Ply Extra heavy-duty sanitation hose of smooth white vinyl. Specially compounded to provide excellent resistance to odor permeation and (FDA) potable water fill. Also for the critical bilge, drain scuppers, live wells, etc. Self-draining installations are recommended for the longest odor-free service.

Features:

  • Sold by the foot
  • A hard PVC helix gives good flexibility and bend radius
  • No cuffs are required

Applications:

  • Specially compounded to provide resistance to odor permeation and (FDA) potable water fill
  • Also for critical bilge, drain scupper, live well, etc

Specifications:

  • Tube & Cover: Hard PVC helix
  • Color: White
  • Reinforcement: PVC Helix
  • Temperature Range: 10°F-120°F (-12°C-48°C)
  • Inner Diameter: (inch) 1-1/2" / (mm) 38.1
  • Outer Diameter: (inch) 1.788" / (mm) 45.4
  • Working Pressure: (Psi Vac In./Hg) 28
  • Weight: (Lb./ 50 ft.) 22 / (Kg/m) 0.76
  • Bend Radius: (inch) 4" / (mm) 102

*Don't use with alcohol, anti-freeze, petrochemicals, or solvents

*Burst Pressure is 4 x Working Pressure



Additional Specs (If Applicable):

  • ID Diameter (inches) = 1-1/2"
More Information
MFG Part Number 148-1126-FT
