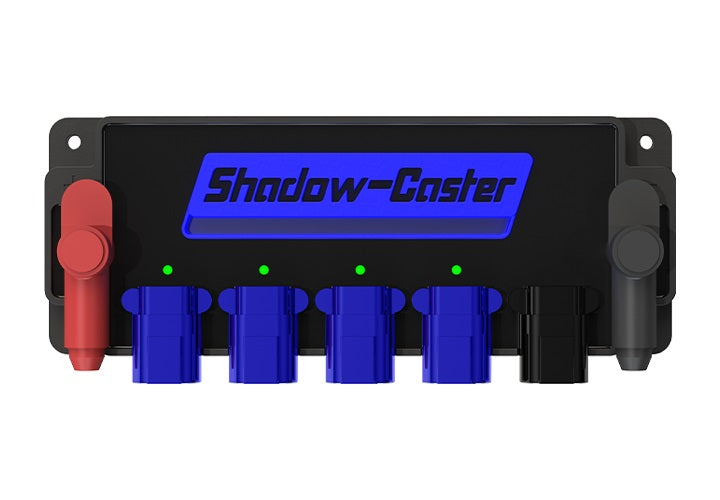

Shadow Caster SCM-PD4CH 4 Channel Power Relay with Shadow-Net Control

Shadow Caster SCM-PD4CH 4 Channel Power Relay with Shadow-Net Control

• Compact remote power control box
• Green and red LED indicates the status of each output channel
• Individual digital overcurrent protection for each channel
• Compatible with Shadow-CasterTM single and multi-color lights
• Recommended when installing two or more underwater lights
• Can be used with a helm mounted switch or with no switch when using a compatible Shadow-NETTM controller
• Blue LED Backlight indicates power state
• Compatible with 12 or 24V systems
• Up to 10 amps per channel
• 5/16 in power lugs
• IP67 washdown rated enclosure

The SCM-PD4CH is a 4-position power distribution module that provides a convenient way to connect and power to four Shadow-CasterTM underwater lights. Digital overcurrent protection for each output insures safe operation of multiple lights and provides an easy way to manage the current needs of multiple light installations. The SCM-PD4CH is housed in a compact IP67 enclosure box that is ideal for mounting in bilge and wet locations.

• 4 channel power control box
• Mounting hardware 4 #8 PH SS x.5 in
• Prewired mating connectors
• Standard 3 year warranty
