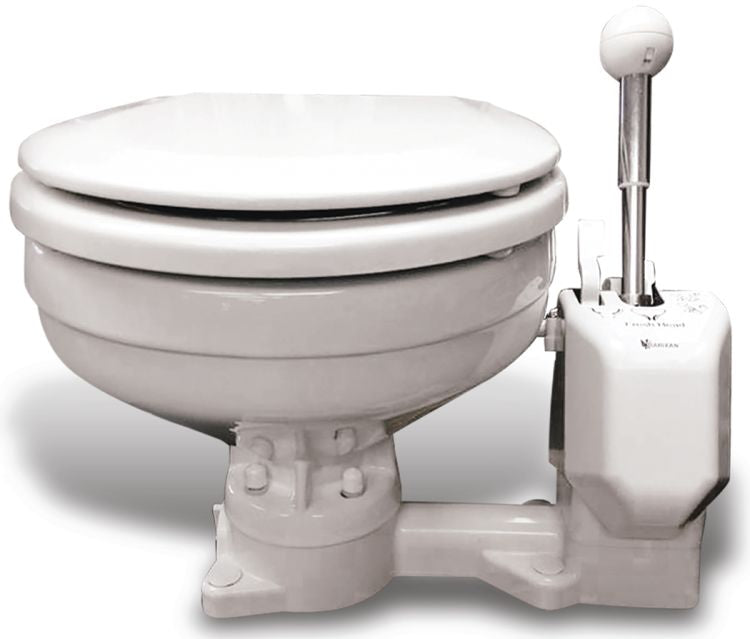

Raritan 25M00 Fresh Head Marine Size Bowl

Raritan 25M00 Fresh Head

Manual Toilet with Marine Bowl

Model: 25M00
UPC: 85462035531

• The first manual marine toilet to utilize pressurized fresh water - eliminates calcium deposits in discharge hose
• Footprint is a direct replacement for competitive models
• No Thru Hulls necessary when installed with a holding tank
• Low water use toilet

With a diaphragm type pump and telescopic handle, flushing is extremely easy. Owners choose how much water to use. A lever allows water into the bowl to pre-wet it for a better flush. A built-in freshwater backflow prevention includes a vacuum break. A lock-out feature stops backflow coming in through the discharge when not in use.

Specifications
Rinse Water Inlet

1/2? FPT Maximum pressure 150 PSI(10 bar) Minimum 3GPM (11.3 L/min) @ 10 PSI(0.7 bar)
Discharge	1 1/2? Hose Maximum height 15 feet( 4.5 meter)
Avg Water Consumption per use	1 pint (.47L) for liquid, 3/4 G (2.8L) for solid use
Dimensions	13 in H x 17 3/4 in W x 17 1/4 in D
