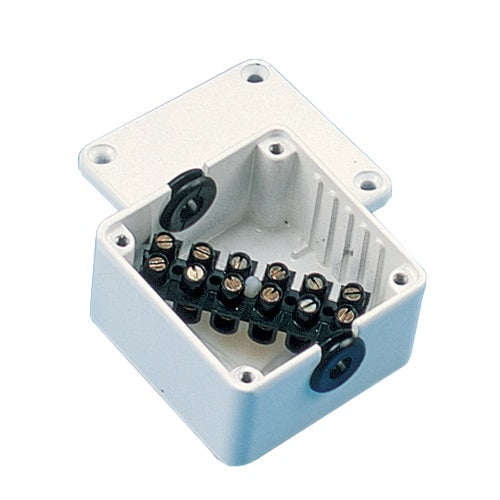

Newmar BX-1 Junction Box

Newmar BX-1 Splash Proof Box

Model: BX-1

• Provides for secure, protected wiring connections in wheel house or below decks and engine rooms. IP rating 54 - "Splashproof"
• Rugged cast aluminum box with white enamel finish
• Metal box reduces electrical interference
• Easy wiring access through multiple grommeted cable entries
• Supplied with high quality connector strips - secure wires with compression fittings - no terminals required - see matrix below for connector strips specifications per box

Specifications
Number of Connector Strips

1
Positions per Strip	6
Max Wire Gauge	16
Max Amps (per position)	6
Cable Entries	2
Cable Diameter	.25in
Box Size (inches)	2 x 2 x 1.2
Box Size (cm)	5.1 x 5.1 x 3.1

What's in the Box:

• Aluminum box
• 6-Position Connector Strip
