Newmar BB2 Bus Bar
Newmar BB2 Bus Bar
Regular price
$60.01 USD
Regular price
Sale price
$60.01 USD

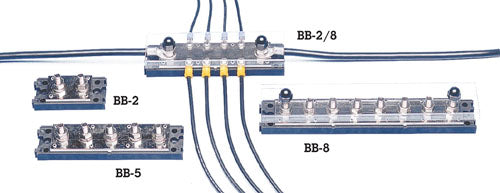

- Ideal as a DC ground tie point or positive bus, these heavy duty, 500 amp rated bus bar assemblies feature 5/16 in studs on 1 in centers in 1/4 in thick copper bar for common connection/distribution of large wire gauges and accommodate 5/16 in ring terminals.
- One combination model features two 5/16 in studs and eight #8 screws, accommodating multiple size wire terminals.
- All bus material is nickel-plated copper.
- A clear insulating protective cover is provided to prevent short circuits and provide visibility of lugs.
- The mounting bases are keyed for interlocking and may be mated with the terminal strips (described above). Conductive parts are captured and recessed away from the mounting surface. Use #8 or #10 screws for mounting.
| Qty. of 5/16 in Studs | Base Size |
| 2 | 3 1/16 in x 1 1/2 in |
| 2 plus 8 - #8 screws | 6 1/16 in x 1 1/2 in |
| 5 | 6 1/16 in x 1 1/2 in |
| 8 | 9 1/16 in x 1 1/2 in |
