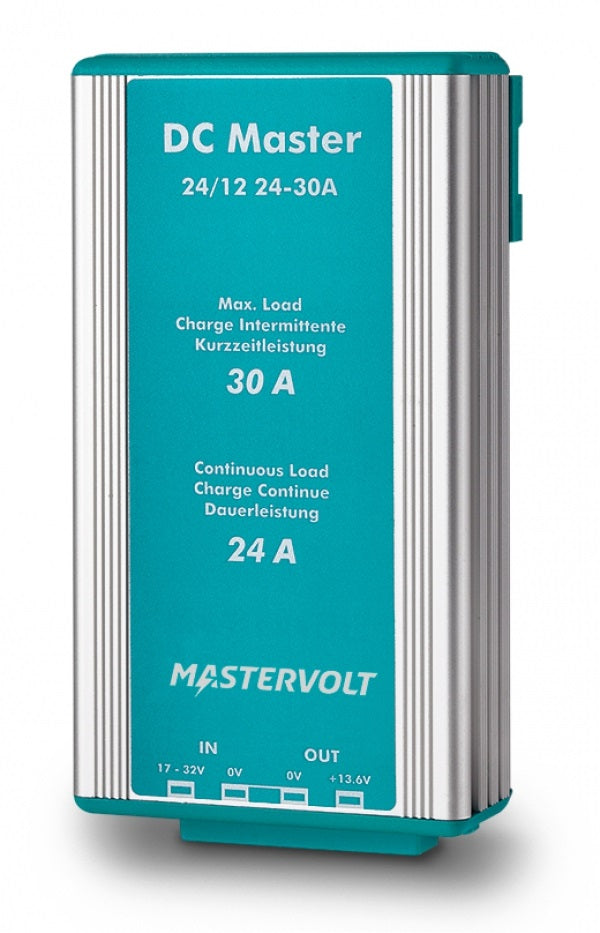

Mastervolt DC Master 24/12-24A 24VDC To 13.6 Vdc - 24A

Mastervolt DC master 24/12-24A DC-DC Converter, Non-Isolated

Model: 81400330

• Recreational and semi-professional use.
• Easy to install using included mounting bracket, screws and fasteners.
• Smart electronics mean no unnecessary heat generation.
• Continuous output.
• Two minutes of extra power for short power boosts.

Specifications
Nominal output voltage

13.6 V
Max. output power	408W
Nominal output power	326W
Max. output current (for 2 min. intervals)	30A
Continuous output current	24A
Nominal input voltage	24V
Input voltage range	20-32V
Galvanic isolation	No
Stabilised	Yes
Approvals	CE, E-mark
Technical Specification
DC consumption	< 10 mA
Connections	Fast-on
Temperature range (ambient temp.)	-13 degF to 176 degF
Sound level	< 30 dBA at 1 mtr
Protection degree	IP53
Cooling	Natural cooling
Dimensions	6.6 x 3.4 x 2.0 inch

What's in the Box:

• DC Master 24/12-24A Non isolated
• Mounting bracket with fastenrs
• Documentation
