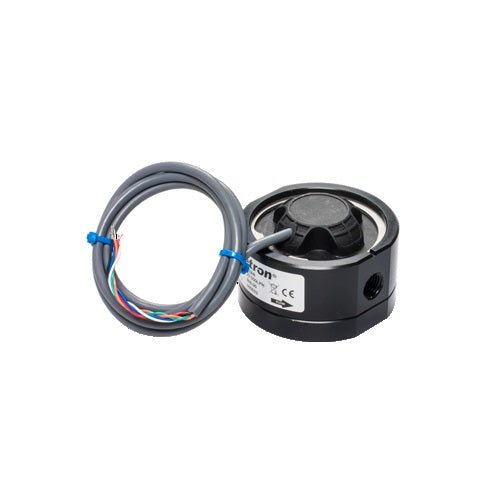

Maretron M2AR Fuel Flow Sensor 6.6 To 132 GPH

Maretron M2AR Fuel Flow Sensor

25 to 500 LPH (6.6 to 132 GPH)

Model: M2AR
UPC: 873804003535

For use with Maretron FFM100 Fuel Flow Meter

Specifications
Operating Temperature

-40 degC to 80 degC (-40 degF to 176 degF)
Storage Temperature	-65 degC to 170 degC (-85 degF to 338 degF)
Port Size	1/4 in NPT Female
Accuracy % Reading	±0.25% (With K factor on sensor entered into FFM100)
Maximum Viscosity	1000 cPs
Maximum Operating Pressure	68.95 Bar (1000 PSI)
Strainer Size	200 Mesh (If not already installed after fuel filter)
Cable Length	1m (3.28 ft)
Weight	1.66lbs
Dimensions	2.91 in x 2.80 in x 1.91 in
