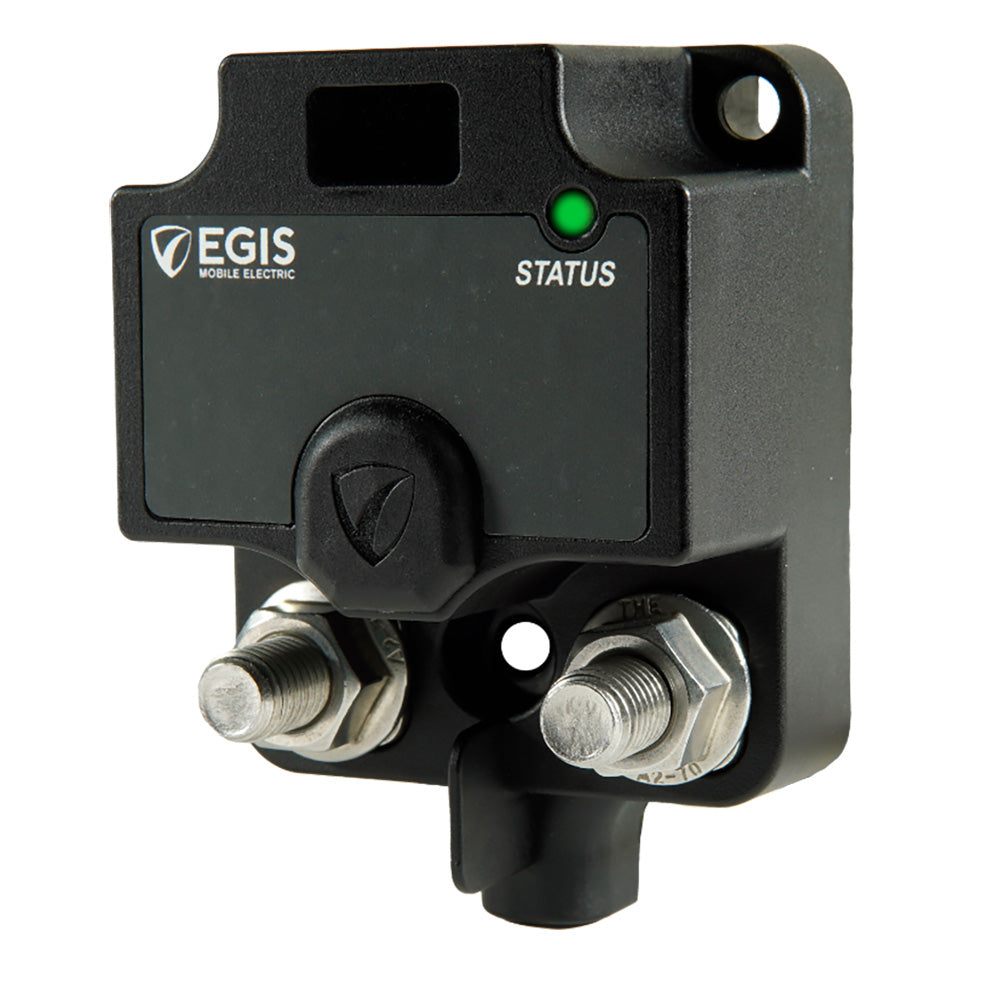

Egis XD Single Low Voltage Disconnect w/o Knob - Tinned Wires [8710-1800]

XD Single Low Voltage Disconnect without Knob - Tinned Wires

Features:

• Up to 500 Amp Continuous Capability Per Relay / Extremely Compact Footprint
• Available With or Without Intuitive Front-Facing Manual Override Knobs with the ability to Lock Relay ON or OFF for Servicing
• Flexible Functionality via Dip Switches: Low Voltage OFF Set-Point, Delay Off Time, and Voltage Differential for Warning Signal
• Remote ON/OFF/Auto Inputs Allow Forced Close or Open or Allow Automatic Operation Based on Voltage Sensing
• LED Indicator Provides Helpful Diagnostics
• Remote External Warning Alarm Control Signal Provides Warning of Impending Voltage-Based Shutdown

Specifications:

• Type: Electric
• Box Dimensions: 3"H x 5"W x 6"L WT: 1.1 lbs
• UPC: 850067590149
