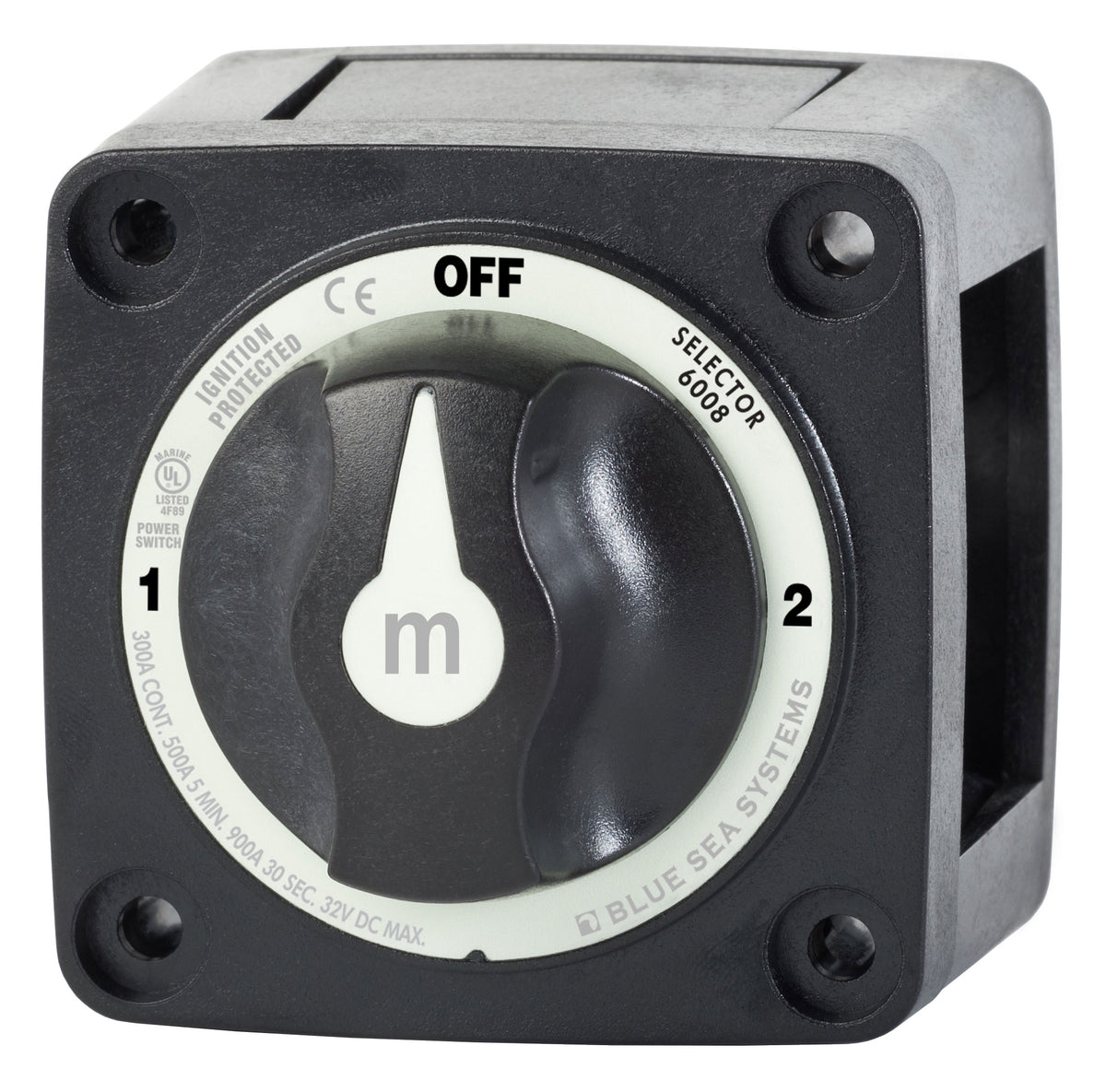

Blue Sea M-Series Battery Switch On/Off/On with Knob Black
Blue Sea M-Series Battery Switch On/Off/On with Knob Black
Regular price
$39.60 USD
Regular price
Sale price
$39.60 USD
Blue Sea Systems m-Series Selector 3 Position Battery Switch - Black
Model: 6008200-BSS- Tin-plated copper studs for maximum conductivity and corrosion resistance
- Studs accept 3/8 (M10) ring terminals
- 7/8 in (22mm) stud length accepts multiple cable terminals
- Blue Sea Systems one-piece terminal stud design never loosens over time
- Isolating cover with snap-on sections protects rear contacts
- Case design allows surface or rear panel mounting
- Waterproof - rated IP66 from water projected in powerful jets
- One-piece stainless flange nuts ensure safe and secure connections
- Breakout tabs allow wire access in any direction
- Ignition protected-safe for installation aboard gasoline powered boats
Switches a single battery to a single load group.
Specifications| Selector 3 Position | |
| Color | Red |
| Switch Positions | 3 |
| Battery Combine | No |
| Alternator Field Disconnect | No |
| Maximum Voltage | 32vDC |
| Stud Size | 3/8 in |
| Terminal Stud Torque | 120 in-lb (13.56 Nm) |
| Continuous Rating | 300A |
| Intermittent Rating | 500A (5 min) |
| Cranking Rating 30 sec | 900A |
| Battery Inputs | 2 |
| Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm2) |
| Mounting Holes | Accept #10 Screw |
| Stud Material | Tinned Copper |
| Stud Torque | 120 in-lb (13.56 Nm) |
| Terminal Stud Size | 3/8 in - 16 (M10) |
