Ancor Double Crimp Ratchet Tool 26-10 AWG Connectors

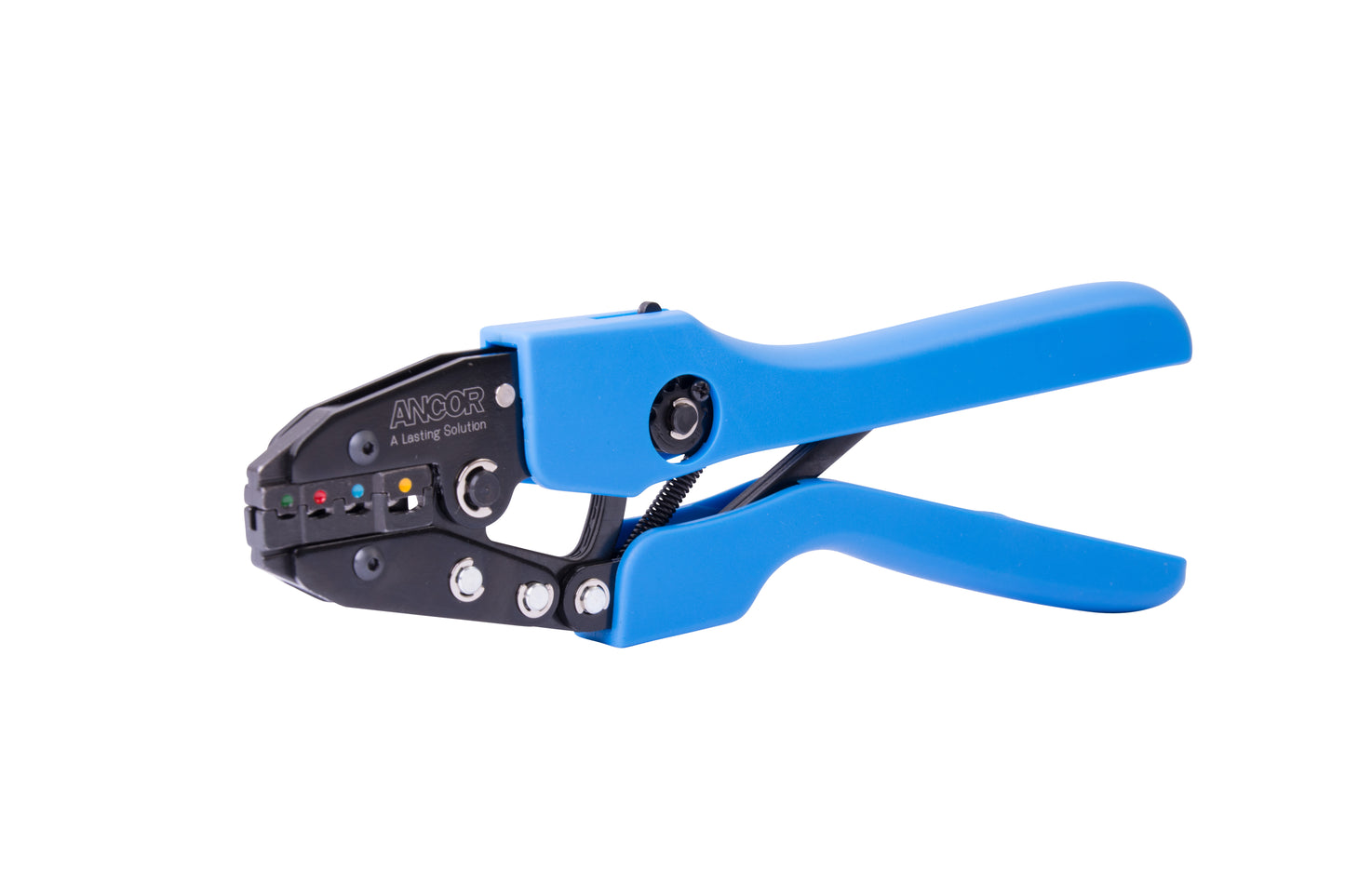

Ancor 703030 Double Crimp Ratchet Tool

Model: 703030

• Crimps 26-10 AWG vinyl and nylon insulated terminals and connectors
• Must be fully closed before tool allows itself to open ensuring a proper crimp
• Includes lever to release jaws mid-cycle in the event of an incorrectly placed terminal
• Ratcheting operation with ergonomic handle to prevent hand fatigue
• Length: 10.25 (260mm)
• Weight: 1.3 lb. (0.6kg)
• Weight: 1.3 lb. (0.6kg)

This tool includes a double crimp mechanism that crimps stranding and insulation portion of Ancor connectors in one motion for superior strain relief of vinyl and nylon terminals.

Specifications
Each in Package Height (in) *

1.000
Each in Package Width (in) *	5.750
Each in Package Length/Depth (in) *	13.750
Each in Package Weight (oz) *	20.800

"
