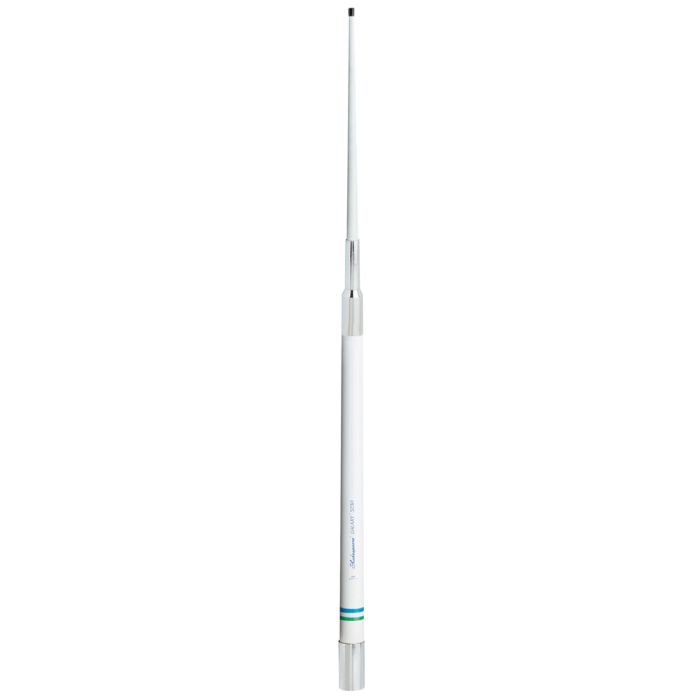

Shakespeare 5230 14' VHF Antenna
Shakespeare Vhf 14Ft 5230 Galaxy
Shakespeare Galaxy 5230
14' VHF 8dB Gain
5/8 wave over 1/2 wave dipole
The ultra-performer, Shakespeares Style 5230 is the most effective 8dB antenna system available anywhere, thanks to its increased signal capture area.
- Brass and copper elements for maximum range and efficiency
- Stainless steel ferrule with standard 1"-14 thread
- Includes 20 feet of RG-8/X cable and a PL-259 connector
- Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit
- Two sections: Base 94", Tip 74" -
- Shakespeare Limited Warranty: 5 years
Technical Specifications:
| Frequency: | VHF Marine Band |
| Bandwidth: | 3 MHz within 2.0:1 VSWR |
| SWR: | nominally 1.5:1 at 156.8 MHz |
| Impedance: | 50 ohms |
| Gain: | 8 dB |
| Max Input (Watts): | 200 watts |
| DC Ground: | YES |
| Height (feet): | 14 |
| Polarization: | Vertical |
Â
Additional Specs (If Applicable):
- Antenna Band = VHF
- Color = White
- Construction = Fiberglass
- Ferrule Type = Stainless Steel
- Length (Inches) = 168"
| MFG Part Number | 5230 |
|---|---|
| upc | 7.19441E+11 |
