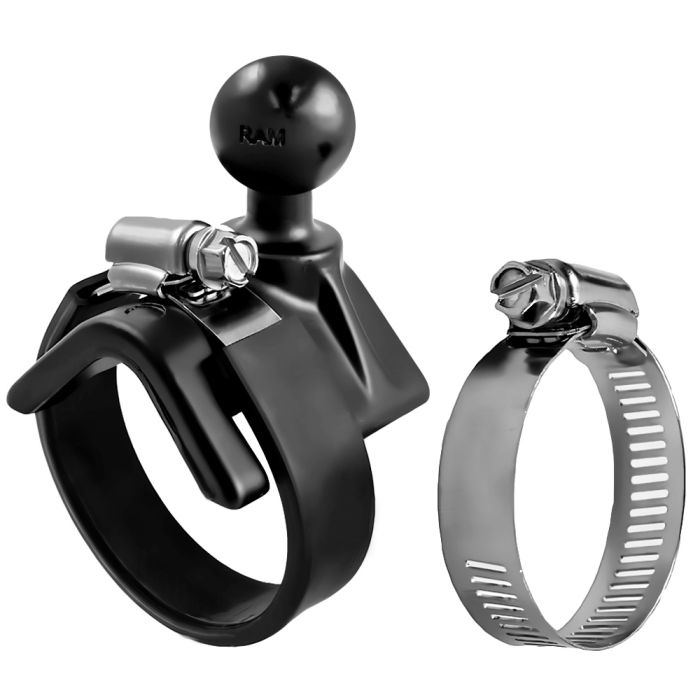

RAM Mount V-Base Rail Yoke Clamp Mount

RAM V-Base Rail Yoke Clamp Mount f/Beechcraft Airplanes
Part #: RAM-B-108BU

Accommodates rails from 1.0" to a maximum of 2.1" in diameter. To mount the RAM-B-108BU base, place the saddle shaped plate on the rail then wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with a screw driver until the strap has a firm hold on the rail. The RAM-B-108BU is an alternative mounting base for Breechcraft airplanes with a "throw over yoke".

Material:
Powder Coated Marine Grade Aluminum

Ball Size:
1" Rubber Ball "B" Size

Included in Kit:

• (1) QTY 6" long metal strap

• (1) QTY 8" long metal strap

• (1) QTY 5.5" rubber strip that supports the metal straps to avoiding scratching or marking of the rail

Note:
The "U" in the part number reflects product packaged in poly bag.



Additional Specs (If Applicable):
